SJ-2 Linear pet blowing machine

Category：

High Speed Blow Moulding Machine

Home

Summary:

Linear Full Servo Automatic Blow Moulding Machine is suitable for producing different shape and type PET bottles.New design of 7 cavity,small space,high speed,low power.It is widely used to produce the carbonated bottle, mineral water,hot fill bottle,beverage bottle, medicine bottle etc.

Online consultation

技术参数
详细描述

Commodity name: SJ-2 Linear pet blowing machine

Product Introduction

SJ-2 Automatic bottle blow machine is 2 Cavity fully automatic blow machine with servo motor.It is suitable for producing PET bottles in all shapes within 2L.
Applications:mineral water,Medicine,Oil,alcohol,carbonated drink, cosmetics,high-temperature-resistant bottles and any kinds of wide-jar bottles.Most important point this machine design is very kind to blow the bottle with different neck size.Spare parts change would be more easy.

Main Features

（1）Preform conveyor equipped with sliding wheels,precise orientation, stable and reliable.
（2）Operation panel by touch LCD,friendly interface and easy operation.
（3）Layered preform heating system,easy temperature regulation,uniform heating effect to improve blow moulding result to the utmost.
（4）5-point double toggle clamping unit by optimized design for higher clamping force and speed.
（5）Automatic lubrication oil device protects the machine well.
（6）Servo motor saves more electricity and gets more output.

ITEM	Unit	SJ-2	SJ-2S	SJ-3M	SJ-3MS
PRODUCT
Theoretical output	Pcs/h	2500	3000	3500	4000
	mm	38	38	38	38
Max. height	L	2.0	2.0	0.6	0.6
Max. diameter	mm	320	320	300	320
Number of cavities	mm	105	105	70	70
MOULD
Number of cavities	/	2	2	3	3
ELECTRICAL
Power		220-380V 50-60Hz
Heating power	KW	40	40	40	40
Total power	KW	45	45	45	45
MACHINE
Main body dimension(LxWxH)	M	2.7x1.6x2.3	2.7x1.6x2.3	2.7x1.6x2.3	2.7x1.6x2.3
Main body weight	KG	2200	2200	2200	2200
Preform autoloader	M	2.0x1.1x2.6	2.0x1.1x2.6	2.0x1.1x2.6	2.0x1.1x2.6
Preform automatic weight	KG	200	200	200	200

Note:The technical data is not binding and may chan gewithout no tice.

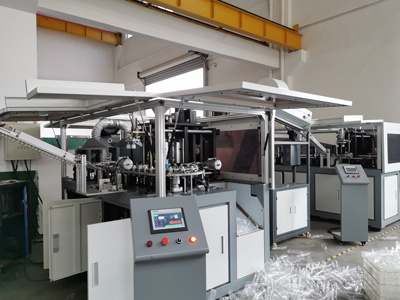

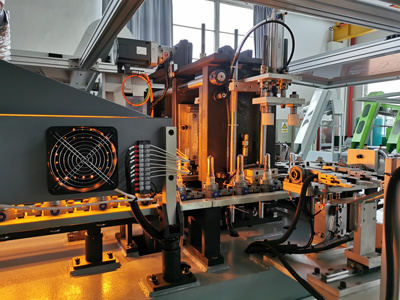

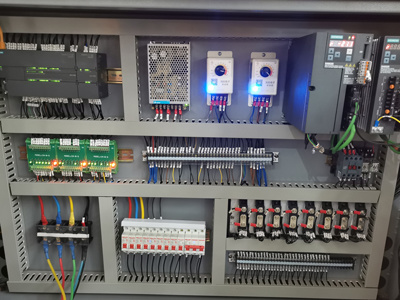

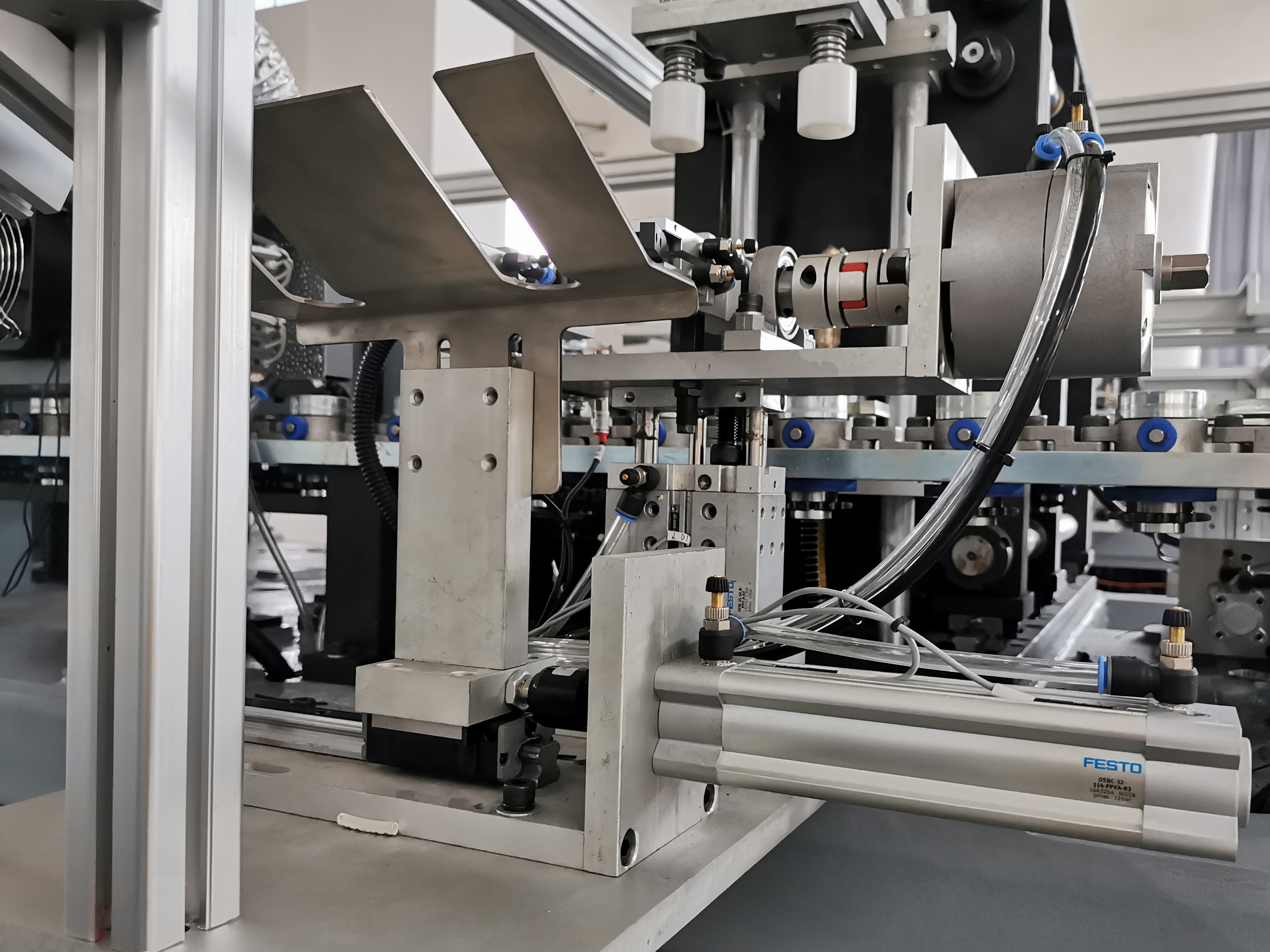

Machine Details
