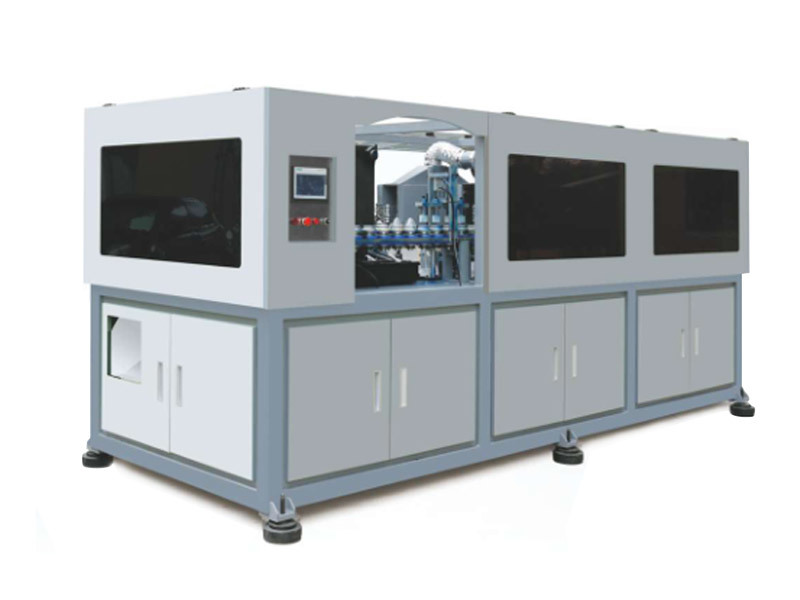

plastic jar blow moulding machine

Category：

Wide-Mouth Automatic Bottle Blowing Machine

Summary:

Linear Full Servo Automatic Blow Moulding Machine is suitable for producing different shape and type PET bottles.New design of 7 cavity,small space,high speed,low power.It is widely used to produce the carbonated bottle, mineral water,hot fill bottle,beverage bottle, medicine bottle etc.

Online consultation

技术参数
详细描述

Commodity name: plastic jar blow moulding machine

Machine advantages

This model could blow normal PET bottles as well as wide-mouth bottles Advantages: preforms feeded by hand and bottles heated and blowed automatically; no technicalrequirement from this worker; hourly capacity from 1400 to 2000pcs; lower cost than usual automatic machines while enjoying stable performance.

ITEM	Unit	SJ-2SW	SJ-3SW	SJ-2W	SJ-1W
PRODUCT
Theoretical output	Pcs/h	2000	3000	1200	600
Max neck size	mm	48	48	100	120
Max. height	L	2.0	2.0	5	7
Max. diameter	mm	320	320	320	360
Number of cavities	mm	105	105	150	180
MOULD
Number of cavities	/	2	3	2	1
ELECTRICAL
Power		220-380V 50-60Hz
Heating power	KW	40	80	24	48
Total power	KW	45	85	29	53
MACHINE
Main body dimension(LxWxH)	M	2.7x1.6x2.3	3.3x1.9x2.3	4.2x1.7x2.0	3.0x1.6x2.0
Main body weight	KG	2200	2600	2200	2200

Note:The technical data is not binding and may chan gewithout no tice.
