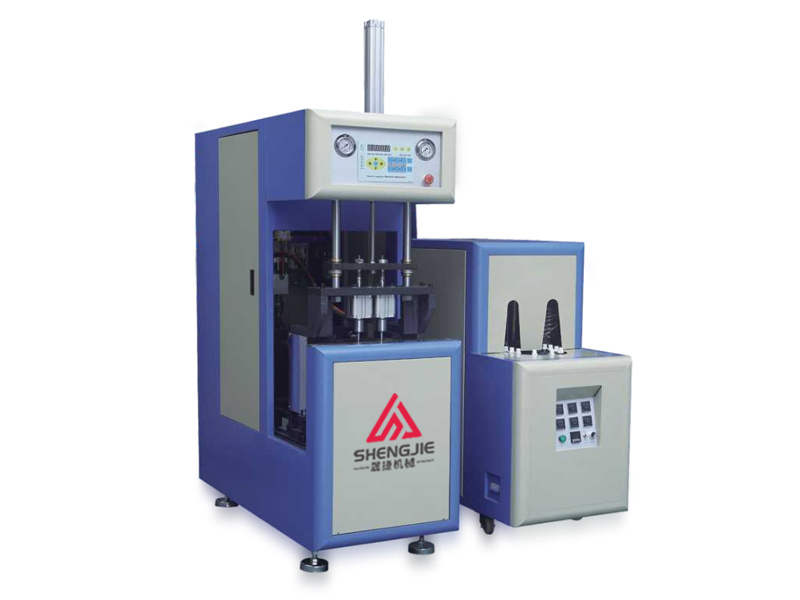

OGS-2 Semi-Automatic Blow Moulding Machine 4cavity
Category：
Summary:
Linear Full Servo Automatic Blow Moulding Machine is suitable for producing different shape and type PET bottles.New design of 7 cavity,small space,high speed,low power.It is widely used to produce the carbonated bottle, mineral water,hot fill bottle,beverage bottle, medicine bottle etc.
- 技术参数
- 详细描述
-
- Commodity name: OGS-2 Semi-Automatic Blow Moulding Machine 4cavity
Product Introduction
OGS-2 semi automatic pet blowing machine is the top sales models.It suitable for producing PET bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water bottle, cosmetic bottle, pesticide bottle,oil bottle, beverage bottle,alcohol bottle, medicine bottle，hand sanitize bottle etc.For normal bottle it can blow up to 3L.
Features
（1）Adopt special electronic contrlling circuit for heating; high eficiency in simultaneous contrlling one lamp or more; lower power consumption.
（2）Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.
（3）The preform will be heated evenly, not be influenced by outside environment.
（4）Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
（5）The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.
（6）Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide stable high pressure for blowing different shapes of big capacity bottles.
（7）The system is equipped with silencer, connecting rod and articulated refueling devices.
（8）Two modes of operation: semi-automatic mode and automatic mode.
（9）Small size, low investment. one person enough to operate, simple and safe.ITEM Unit OGS-2 Theoretical output Pcs/h 900 PRODUCT Volume L 3.0 Max. height mm 360 Max. diameter mm 105 MOULD Number of cavities / 2 Mould plate dimension(LxH) mm 490x405 Mould thickness mm 220 Mould opening stroke mm 160 ELECTRICAL Power 220-380V/50-60Hz Total power KW 11 Heating power KW 10 MACHINE Main body dimension(LxWxH) M 1.5x0.65x2.0 Main body weight KG 550 Preform autoloader(LxWxH) M 1.4x0.60x1.4 Preform automatic weight KG 300 - The above technical parameters are subject to the real product. Machines can be customized for special products.
Keywords:- semi automatic blow moulding machine 4cavity on sales
- customized semi automatic blow moulding machine 4cavity
- semi automatic blow moulding machine 4cavity prices
Product Introduction
OGS-2 semi automatic pet blowing machine is the top sales models.It suitable for producing PET bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water bottle, cosmetic bottle, pesticide bottle,oil bottle, beverage bottle,alcohol bottle, medicine bottle，hand sanitize bottle etc.For normal bottle it can blow up to 3L.
Features
（1）Adopt special electronic contrlling circuit for heating; high eficiency in simultaneous contrlling one lamp or more; lower power consumption.
（2）Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.
（3）The preform will be heated evenly, not be influenced by outside environment.
（4）Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
（5）The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.
（6）Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide stable high pressure for blowing different shapes of big capacity bottles.
（7）The system is equipped with silencer, connecting rod and articulated refueling devices.
（8）Two modes of operation: semi-automatic mode and automatic mode.
（9）Small size, low investment. one person enough to operate, simple and safe.
| ITEM | Unit | OGS-2 | |
| Theoretical output | Pcs/h | 900 | |
| PRODUCT | Volume | L | 3.0 |
| Max. height | mm | 360 | |
| Max. diameter | mm | 105 | |
| MOULD | Number of cavities | / | 2 |
| Mould plate dimension(LxH) | mm | 490x405 | |
| Mould thickness | mm | 220 | |
| Mould opening stroke | mm | 160 | |
| ELECTRICAL | Power | 220-380V/50-60Hz | |
| Total power | KW | 11 | |
| Heating power | KW | 10 | |
| MACHINE | Main body dimension(LxWxH) | M | 1.5x0.65x2.0 |
| Main body weight | KG | 550 | |
| Preform autoloader(LxWxH) | M | 1.4x0.60x1.4 | |
| Preform automatic weight | KG | 300 |
- The above technical parameters are subject to the real product. Machines can be customized for special products.
Keywords:
semi automatic blow moulding machine 4cavity on sales
customized semi automatic blow moulding machine 4cavity
semi automatic blow moulding machine 4cavity prices
