plastic bottle making machine
Category：
Summary:

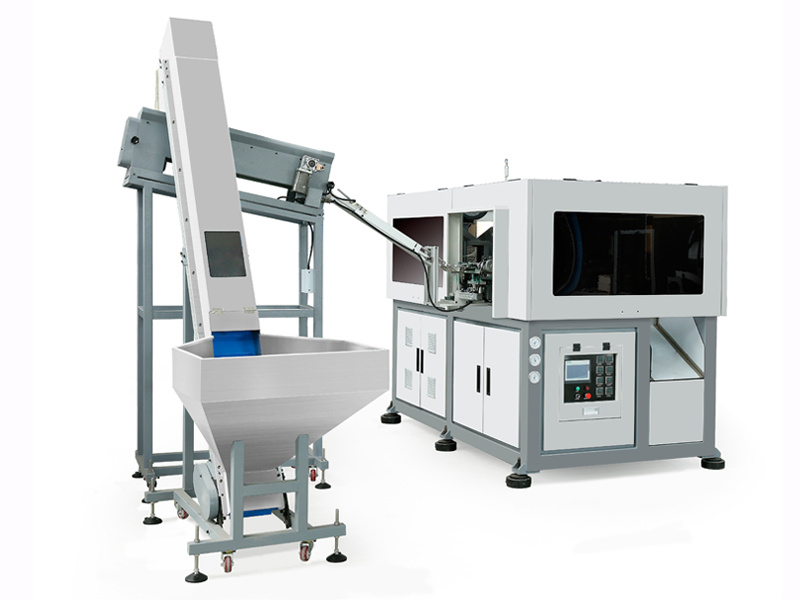

Linear Full Servo Automatic Blow Moulding Machine is suitable for producing different shape and type PET bottles.New design of 7 cavity,small space,high speed,low power.It is widely used to produce the carbonated bottle, mineral water,hot fill bottle,beverage bottle, medicine bottle etc.
- 技术参数
- 详细描述
-
- Commodity name: plastic bottle making machine
- 产品型号: SJ-3
high speed blow moulding machinehigh speed blow moulding machine Introduction：
（1）Adopt touch-type color HMI system, easy to operate.
（2）Bottle outlet systemis able to add a lin king unit which can connect with conveyor system and transmit finished bottles directly to the rear process
（3）Unique machine combination design facillitates performs mechanically fed or manually, inserted by labors,maximize machine ' s superiority.
（4）Bottle outlet systemis able to add a linking unit and combine with conveyor system to connect to flling machine,hence reduce bottles' secondary pollution and save labors.ITEM UNIT SJ-3 SJ-3S SJ-4M SJ-4MS PRODUCT Theoretical output Pcs/h 3500 4000 4500 5000 mm 38 38 38 38 Max. height L 2.0 2.0 2.0 2.0 Max. diameter mm 320 320 300 300 Number of cavities mm 105 105 70 70 MOULD Number of cavities / 3 3 4 4 ELECTRICAL Power 220-380V 50-60Hz Heating power KW 80 80 80 80 Total power KW 85 85 85 85 MACHINE Main body dimension(LxWxH) M 3.3x1.9x2.3 3.3x1.9x2.3 3.3x1.9x2.3 3.3x1.9x2.3 Main body weight KG 2600 2600 2600 2600 Preform autoloader M 2.0x1.1x2.6 2.0x1.1x2.6 2.0x1.1x2.6 2.0x1.1x2.6 Preform automatic weight KG 200 200 200 200 Keywords:- plastic bottle making machine manufacturers
- plastic bottle making machine company
- good price and quality plastic bottle making machine
high speed blow moulding machine
high speed blow moulding machine Introduction：
（1）Adopt touch-type color HMI system, easy to operate.
（2）Bottle outlet systemis able to add a lin king unit which can connect with conveyor system and transmit finished bottles directly to the rear process
（3）Unique machine combination design facillitates performs mechanically fed or manually, inserted by labors,maximize machine ' s superiority.
（4）Bottle outlet systemis able to add a linking unit and combine with conveyor system to connect to flling machine,hence reduce bottles' secondary pollution and save labors.
| ITEM | UNIT | SJ-3 | SJ-3S | SJ-4M | SJ-4MS |
| PRODUCT | |||||
| Theoretical output | Pcs/h | 3500 | 4000 | 4500 | 5000 |
| mm | 38 | 38 | 38 | 38 | |
| Max. height | L | 2.0 | 2.0 | 2.0 | 2.0 |
| Max. diameter | mm | 320 | 320 | 300 | 300 |
| Number of cavities | mm | 105 | 105 | 70 | 70 |
| MOULD | |||||
| Number of cavities | / | 3 | 3 | 4 | 4 |
| ELECTRICAL | |||||
| Power | 220-380V 50-60Hz | ||||
| Heating power | KW | 80 | 80 | 80 | 80 |
| Total power | KW | 85 | 85 | 85 | 85 |
| MACHINE | |||||
| Main body dimension(LxWxH) | M | 3.3x1.9x2.3 | 3.3x1.9x2.3 | 3.3x1.9x2.3 | 3.3x1.9x2.3 |
| Main body weight | KG | 2600 | 2600 | 2600 | 2600 |
| Preform autoloader | M | 2.0x1.1x2.6 | 2.0x1.1x2.6 | 2.0x1.1x2.6 | 2.0x1.1x2.6 |
| Preform automatic weight | KG | 200 | 200 | 200 | 200 |
Keywords:
plastic bottle making machine manufacturers
plastic bottle making machine company
good price and quality plastic bottle making machine
